Direct-from-factory commercial and industrial LED flood lights from 50W to 1200W — engineered with die-cast aluminum housing, IP65 weatherproof sealing, Lumileds 3030 chips, and 180° adjustable brackets. Specified for stadium and sports lighting, area and parking lot lighting, construction and site lighting, ports, warehouses, façades and industrial yards worldwide.
Match Wattage to Throw Distance
Flood light power depends on throw distance, area size, and target lux. Use this as a starting point — we provide a free DIALux simulation with every quote to confirm aiming, uniformity, and lux for your exact site.
| Throw Distance | Typical Application | Suggested Power | Beam Angle |
|---|---|---|---|
| 5 – 10 m | Building facade, signage, small yard | 50 – 100W | Wide (90°–120°) |
| 10 – 20 m | Car parks, loading bays, small courts | 100 – 200W | Medium (60°–90°) |
| 20 – 40 m | Sports courts, industrial yards, perimeter | 200 – 400W | Medium-narrow (30°–60°) |
| 40 – 80 m | Stadiums, large yards, container terminals | 400 – 800W | Narrow (15°–30°) |
| 80 m + | High-mast stadiums, ports, mining sites | 800 – 1200W | Spot / asymmetric optics |
* Guidance only. Actual power depends on required lux, mounting position, and aiming angle. Request a free DIALux study for project-accurate specification.
Choose the Right Power for Your Project
From 50W compact units for façade lighting to 1200W flagship modules for stadium illumination.
What's Inside Every Floodlight
Six engineering choices that separate our floodlights from generic Chinese OEMs.

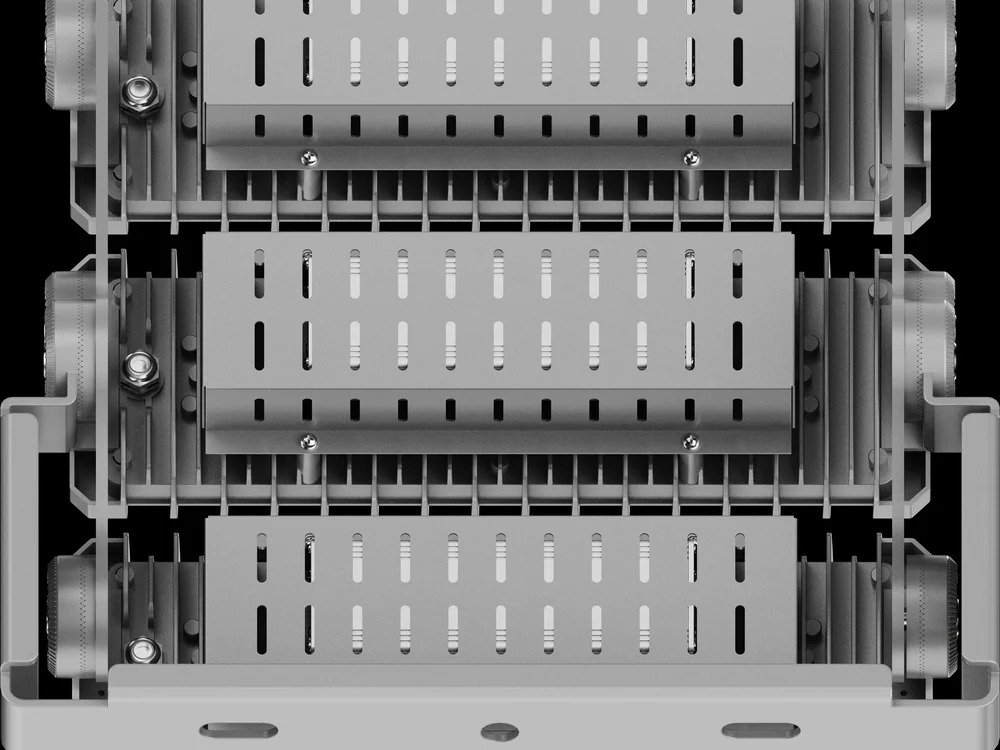

Die-Cast Aluminum Housing
A die-cast aluminum body gives the fixture its structural rigidity and the thermal mass to pull heat away from the LEDs.

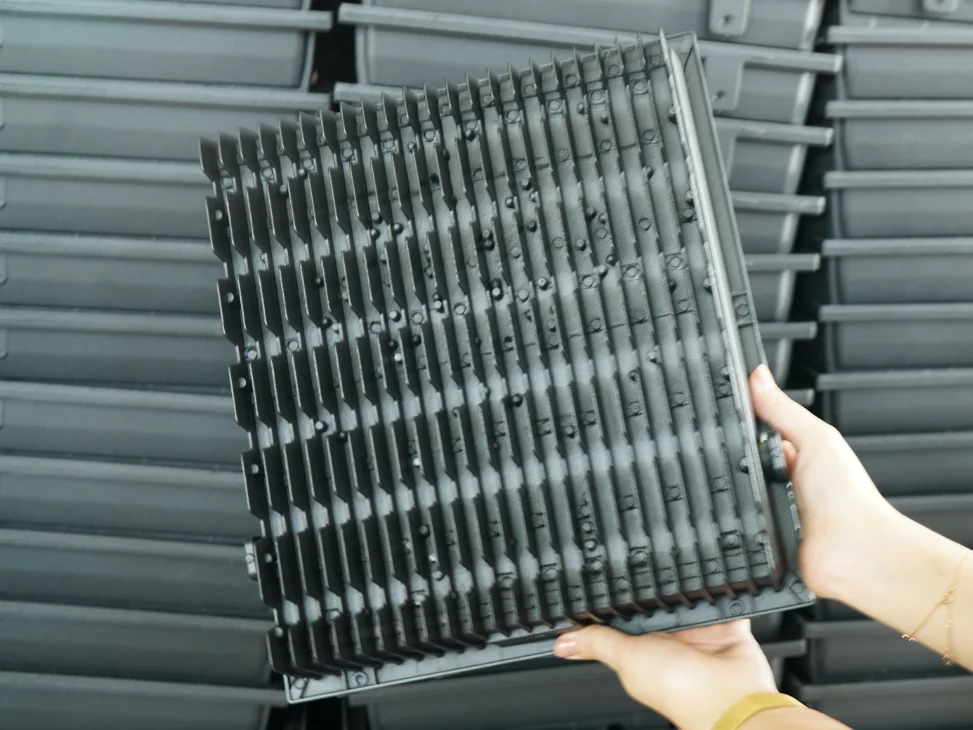

Independent Passive Heat Dissipation
Each LED module carries its own finned heat sink, preventing the thermal stacking that shortens fixture life.

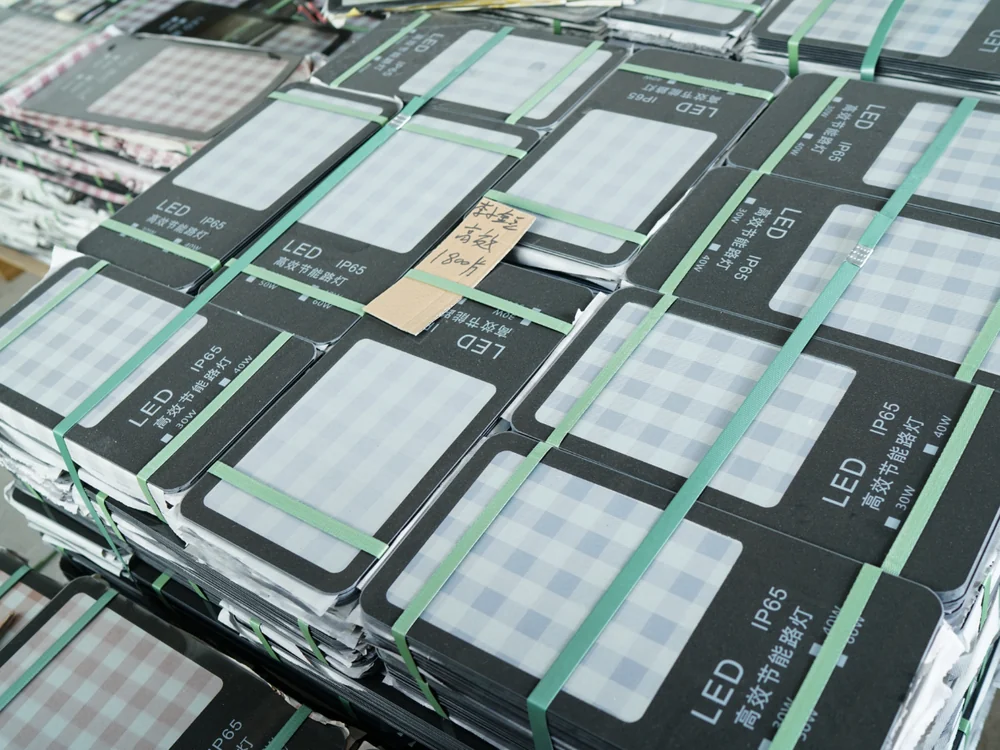

High-Temperature Tempered Glass
A tempered-glass front cover withstands thermal shock and mechanical impact, sealed to IP65 against dust and water.

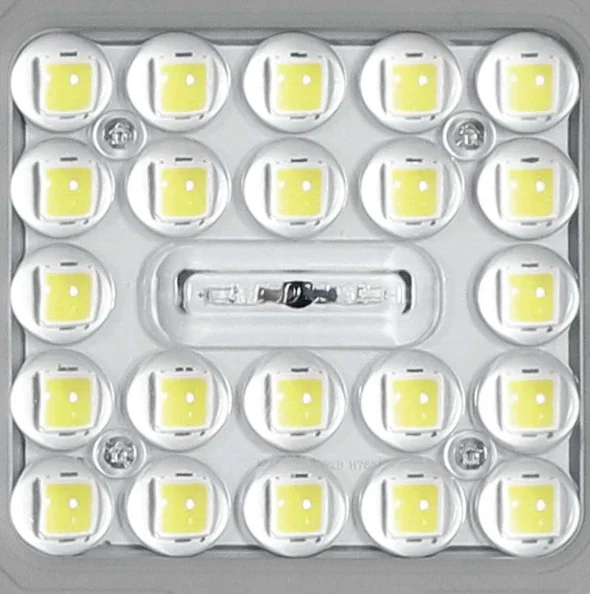

High-Transparency Optical Lens
PC optical lenses over each module shape the beam, with six photometric distributions available on request.

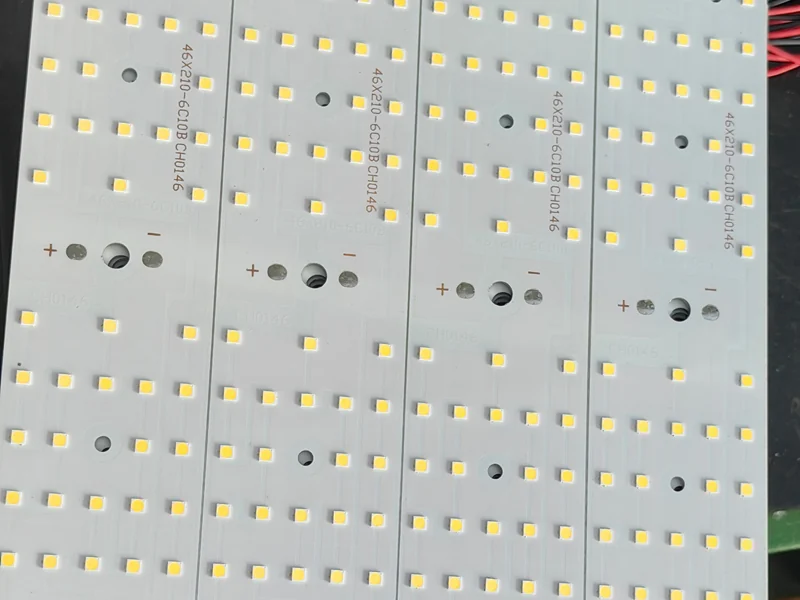

High-Efficacy LED Chips
Branded high-efficacy LED chips on aluminum PCBs deliver the lumen output and lumen maintenance behind our published photometry.

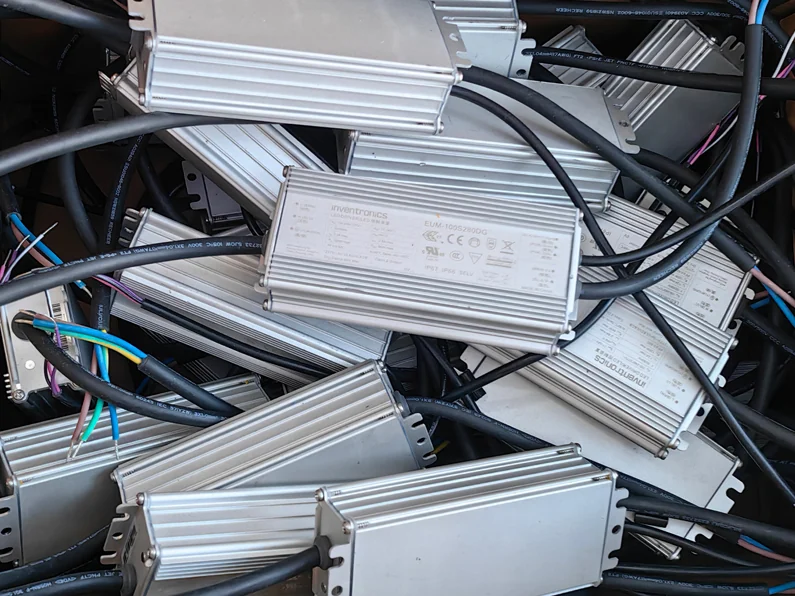

Independent Constant-Current Driver
A sealed aluminum-cased constant-current driver — serviceable and replaceable in the field without scrapping the fixture.
16 Floodlight Series. One Manufacturer.
Each series is engineered for a specific application envelope. Click any series to request its full spec sheet, IES files, and DIALux-compatible photometric data.
SJSC201
A portable, rechargeable floodlight-style work light with a folding stand and carry handle — built for construction sites, roadside repair, and areas without mains power. Aluminum body, IP65 sealed, with selectable run-time modes.
- Rechargeable battery — fully cordless operation
- Folding stand + padded carry handle
- Selectable 4 / 8 / 16-hour run-time
- IP65 dust & water resistant
- Twin COB modules, aluminum housing

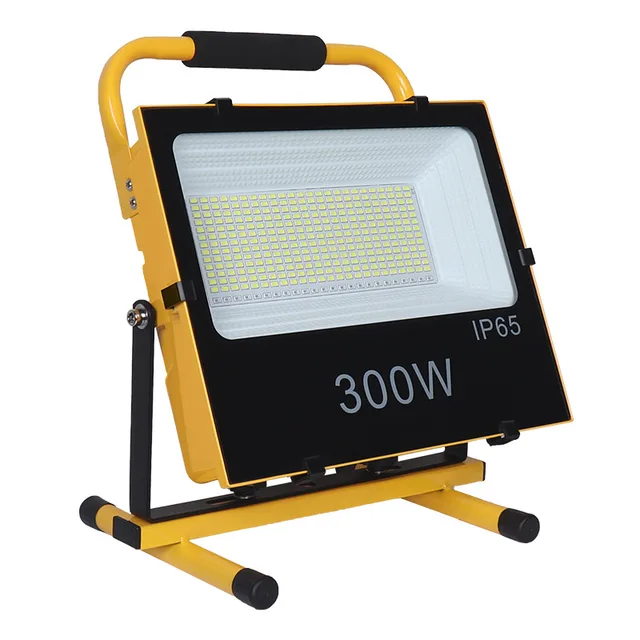

SJSC202
A high-output rechargeable work light with a wide SMD LED panel, folding stand, and carry handle for large-area temporary lighting on site. IP65 sealed for outdoor use.
- High-density SMD LED panel
- Rechargeable — fully cordless operation
- Folding stand + carry handle
- IP65 dust & water resistant

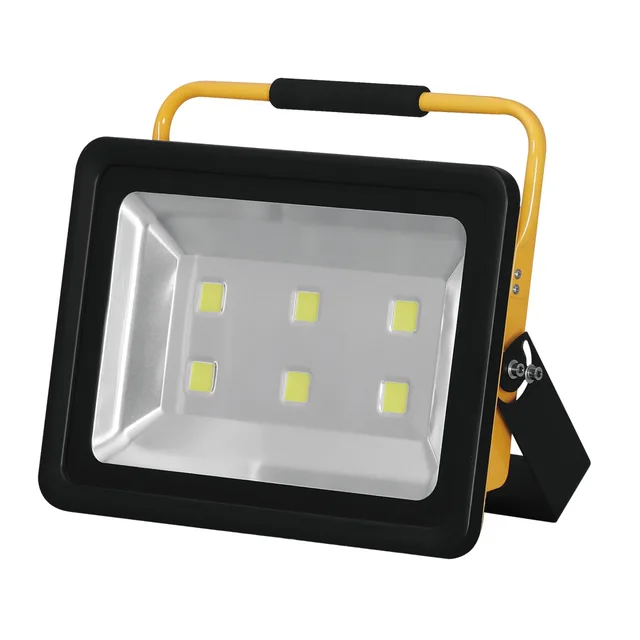

SJSC203
A rechargeable work light with six COB LED modules in a reflector housing for bright, even output, with a folding stand for site and workshop use. IP65 sealed.
- Six COB LED modules
- Rechargeable — fully cordless operation
- Folding stand + carry handle
- IP65 dust & water resistant

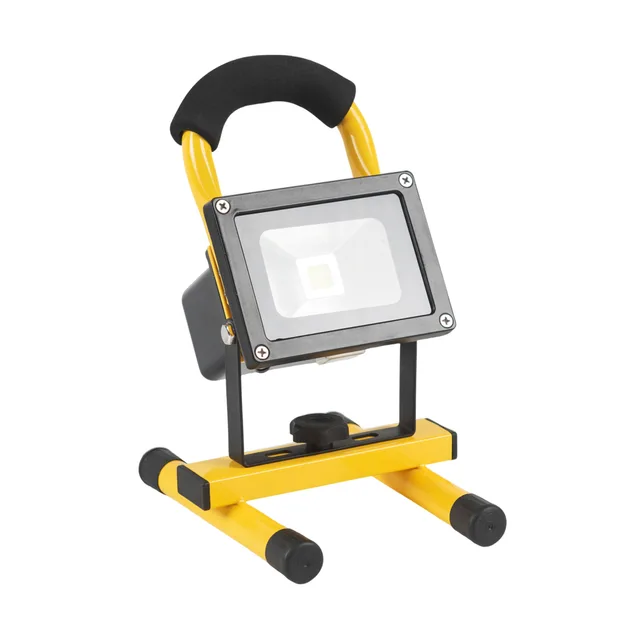

SJSC204
A compact, lightweight rechargeable work light with a single COB module and folding stand — easy to carry for maintenance, camping, and emergency use. IP65 sealed.
- Single COB module
- Compact & lightweight
- Rechargeable — fully cordless operation
- IP65 dust & water resistant

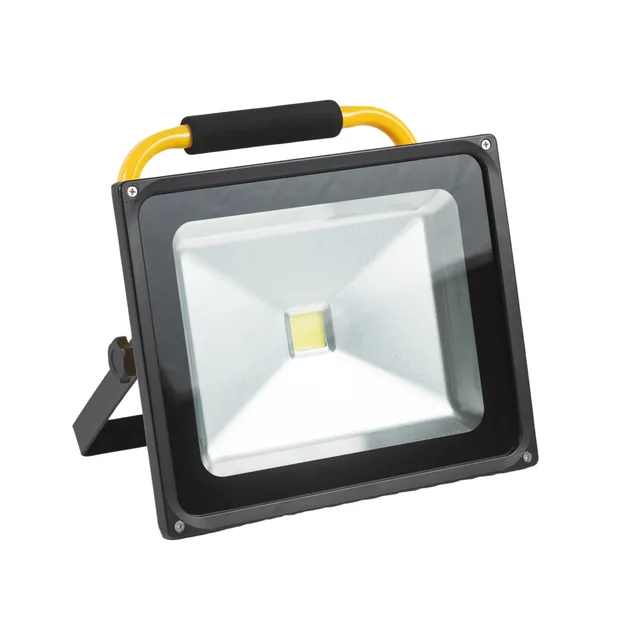

SJSC205
A portable rechargeable work light with a single high-output module and folding kickstand, for focused task lighting on site and outdoors. IP65 sealed — available in multiple wattages.
- Single high-output module
- Rechargeable — fully cordless operation
- Folding kickstand
- IP65 dust & water resistant

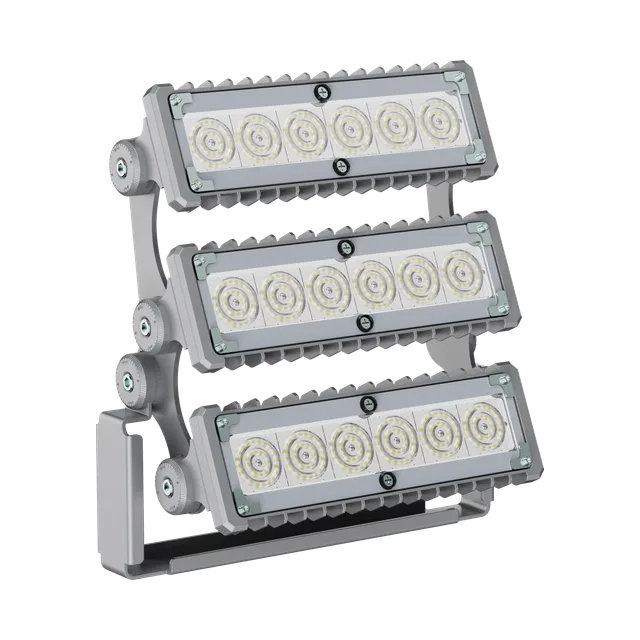

SJTG611
With its advanced technology and meticulous design, SJTG611 series is the ultimate solution for professional sport lighting. Each module is independently rotatable for maximum performance and application flexibility.
- Modular design — independently rotatable modules
- Independent passive heat dissipation per module
- Set screws lock orientation of each adjustable module
- High-transparency polycarbonate optical lenses for best light transmission
- Tempered glass with diffuser + integrated optical lens for six distribution patterns

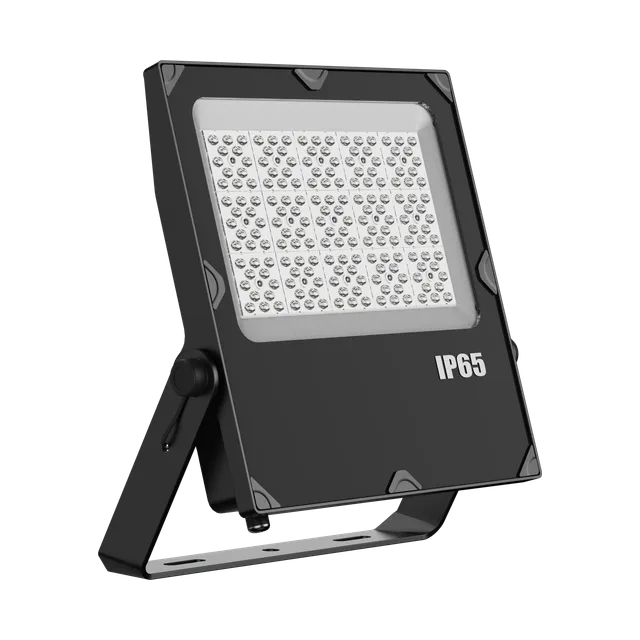

SJTG612
The SJTG612 series is a projection lamp designed with the best technology — the latest solution formal and commercial indoor lighting optimized for achieving lighting performance.
- High-pressure die-cast aluminum body
- Front cover plate high-temperature tempered glass
- Energy-saving solution for buildings, sports halls, and commercial spaces

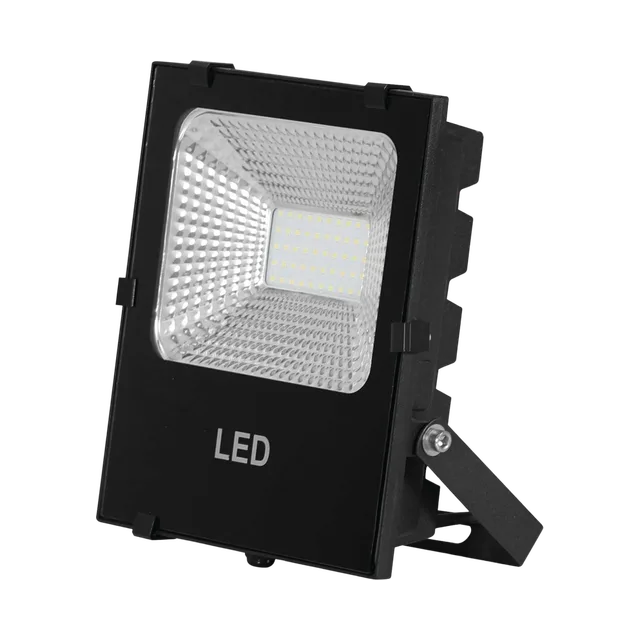

SJTG601
The lamp body is formed by high-pressure die-casting aluminum, which has characteristics of impact resistance and corrosion resistance. High-purity aluminum reflector ensures uniform light output and maximum efficiency.
- High-pressure die-cast aluminum body
- High-purity aluminum reflector
- Uniform light output, high light efficiency

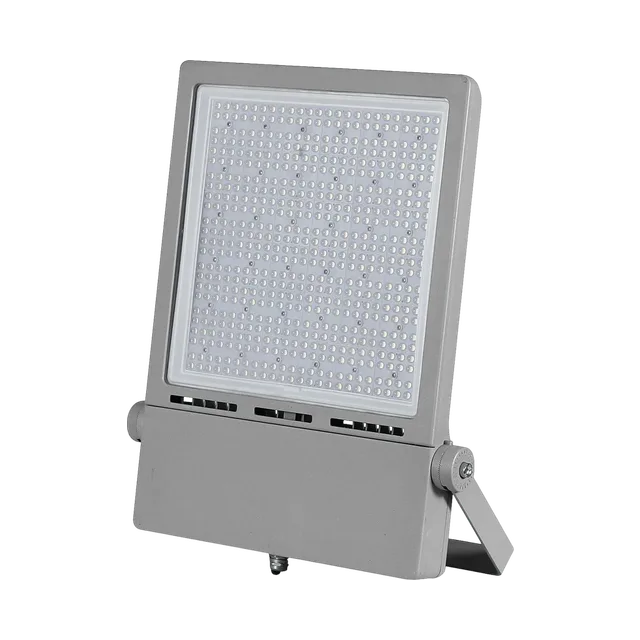

SJTG602
Separate cavity design for light source and driver cavity effectively control the heat island effect, thus prolonging the service life of the luminaire. 180 degrees adjustable angle, the irradiation angle can be adjusted at will.
- Separated chambers for LED + driver
- Reduced heat-stacking effect → longer service life
- 180° irradiation angle adjustment

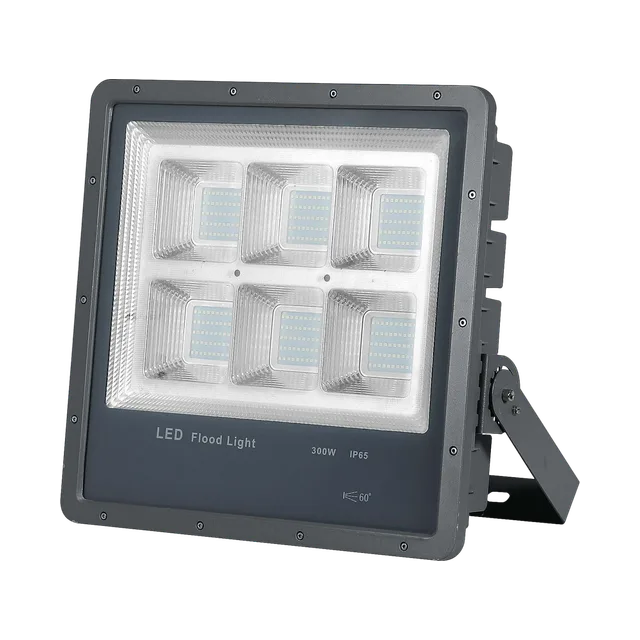

SJTG603
The lamp body is formed by high-pressure die-casting aluminum, which has the characteristics of impact resistance and corrosion resistance. The glass is made of high-strength toughened glass, simple and generous, and the protection grade reaches IP65.
- High-strength toughened glass front
- Die-cast aluminum body — impact and corrosion resistant
- IP65 protection grade

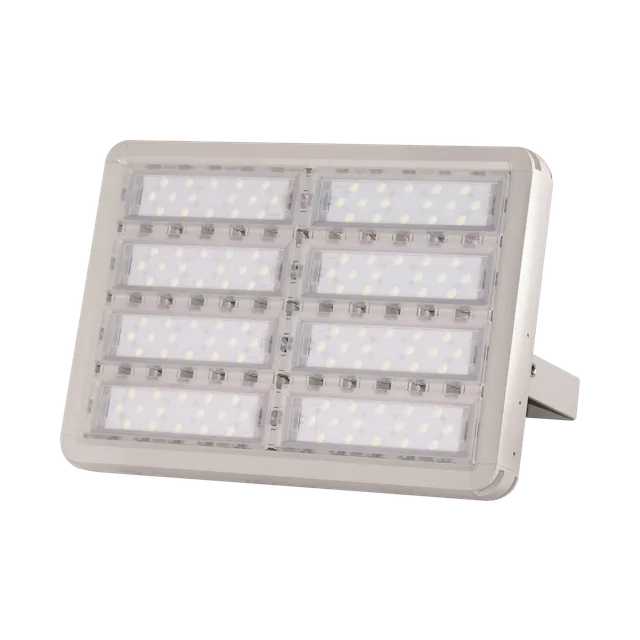

SJTG604
High-purity aluminum reflector, uniform light output, high light efficiency. Mainly applicable to all kinds of factory areas, city lighting, building facade, greening, sculpture, and other places.
- High-purity aluminum reflector
- Uniform light output, high efficiency
- For factories, city lighting, façade, greening, sculptures

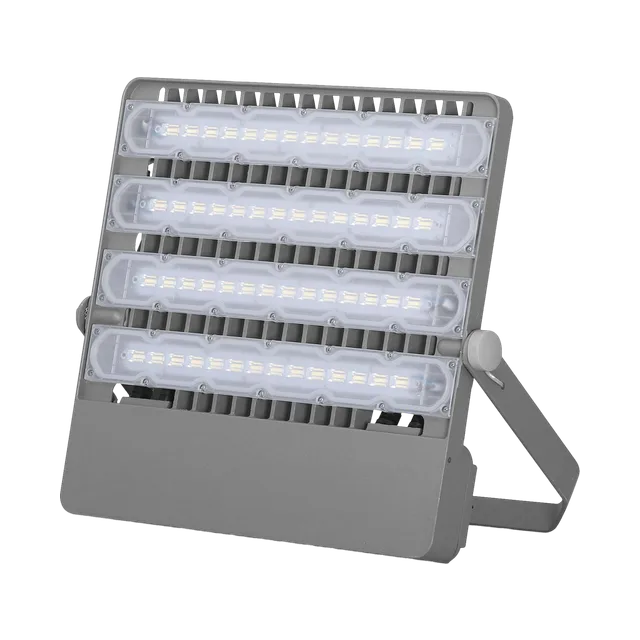

SJTG605
Adopting all-aluminum module and fins tightly combined technology, so that the heat dissipation effect is better. Various optical lenses are optional to meet the lighting requirements of different scenes.
- All-aluminum modular construction
- Fins tightly combined with module for better dissipation
- Multiple optical lens options

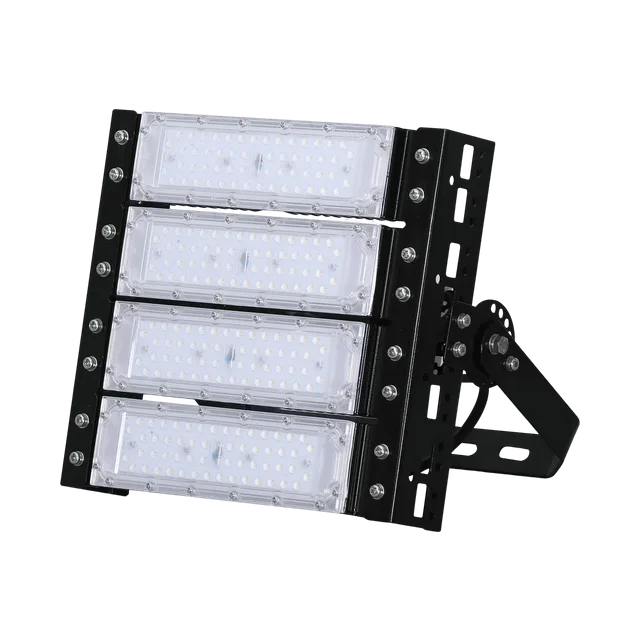

SJTG606
Adopting all-aluminum module and fins tightly combined technology — multiple modules stack together to deliver up to 480W output for large-area illumination.
- All-aluminum module + fin design
- Multi-module stacking — scales to 480W
- Optional optical lenses for varied applications

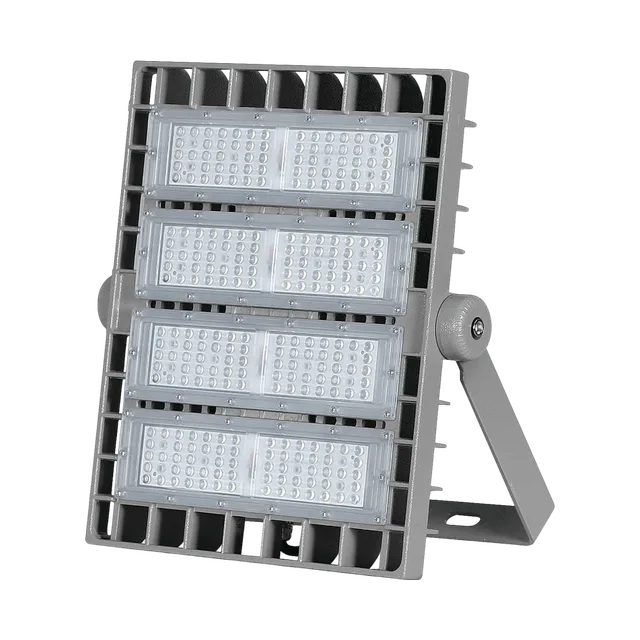

SJTG608
The lamp body is formed by high-pressure die-casting aluminum. The glass is made of high-strength toughened glass — simple and generous, and the protection grade reaches IP65.
- High-strength toughened glass
- Impact-resistant die-cast aluminum body
- IP65 protection

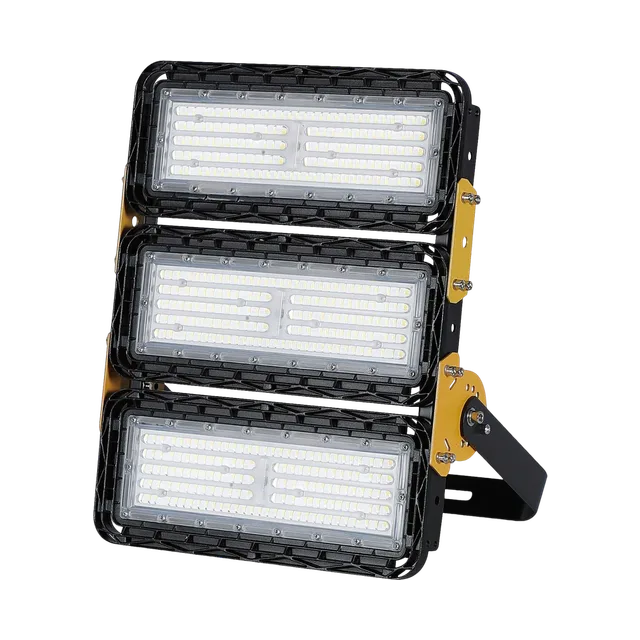

SJTG609
The lamp body is formed by high-pressure die-casting aluminum, which has characteristics of impact resistance and corrosion resistance. Mainly applicable for factories, city lighting, building façades, greening, sculptures, and other places.
- High-pressure die-cast aluminum
- Impact + corrosion resistant
- For industrial yards, façades, public sculpture

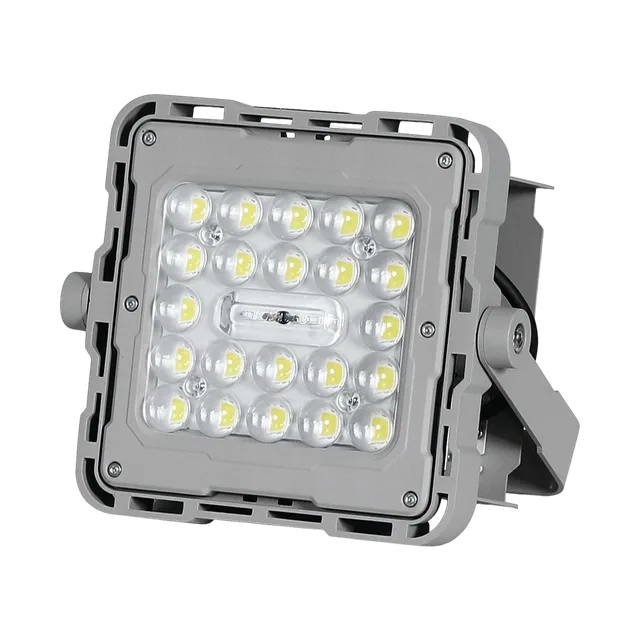

SJTG610
Matrix Glass Lens: Permanent resistance to aging, yellowing, corrosion, and high temperatures, easy to clean with up to 95% light transmittance. New Climax Grille Structure: Integrated grille structure design with high-efficiency heat dissipation and superior mechanical strength. Professional Optical Design: Equipped with multiple patented optical lenses for more uniform illumination area, higher luminosity, and meeting diverse optical requirements across various applications.
- Matrix Glass Lens — 95% transmittance, anti-yellowing
- New Climax Grille Structure — integrated heat dissipation
- Professional optical design with patented lenses
- Scales from 50W to 1200W
Shared Across the SJTG Floodlight Series
Engineering baseline every mains-powered Sunjoylight SJTG floodlight meets. (The portable SJSC work lights are rechargeable — see each model for its own specification.)
| Lamp Body Material | Aluminum Die-Casting Housing |
| Light Source | Lumileds 3030 LED |
| Operating Voltage | AC100–277V |
| Color Temperature | 2700K – 6500K |
| Color Rendering Index (CRI) | ≥80 |
| Operating Temperature | -20°C ~ 45°C |
| Ingress Protection (IP) | IP65 |
| LED Lifespan | >50,000 hours |
| Luminous Efficacy | 120 – 160 lm/W |
Measured, Not Claimed
A sample 200W-class unit (model CDNFC9185) measured on our HPG1800 distributed goniophotometer, April 2026. These are instrument readings, not datasheet promises — the full 16-page report is downloadable below, and per-SKU LM-79/IES reports ship with every quotation.
| Input power (measured) | 201.3 W @ 221.1 V |
| Power factor | 0.986 |
| Total luminous flux | 35,309 lm |
| Luminaire efficacy (measured) | 175.4 lm/W |
| Peak intensity | 34,444 cd |
| Beam angle (50%) | 60.1° H × 59.3° V |
| Energy class | EEI 0.081 · A++ |
LED package verified separately: Ra 82.2 CRI measured at 5569K on the integrating-sphere chip report — the measurement behind our CRI ≥80 specification.
| Mounting height | Average lux | Center lux | Spot Ø |
|---|---|---|---|
| 1.5 m | 8,977 lx | 15,299 lx | 1.71 m |
| 2.0 m | 5,050 lx | 8,606 lx | 2.28 m |
| 4.0 m | 1,262 lx | 2,151 lx | 4.55 m |
| 4.5 m | 998 lx | 1,700 lx | 5.12 m |
| 10 m | 202 lx | 344 lx | 11.38 m |
Values as measured on the referenced sample unit; individual SKUs vary by configuration — request the matching report with your quotation.
Recommended Lux Levels
Typical target illuminance for flood-light applications, based on general lighting standards (EN 12193 sports / EN 12464). Confirm against your local code.
| Building facade / architectural | 30 – 150 lux |
| Car park / open yard | 20 – 75 lux |
| Industrial outdoor work area | 50 – 200 lux |
| Recreational sports field | 75 – 200 lux |
| Training / amateur competition | 200 – 500 lux |
| Professional sports / broadcast | 500 – 2000 lux |
| Container terminal / port yard | 20 – 50 lux |
| Security / perimeter lighting | 10 – 50 lux |
LED vs Traditional Flood
Approximate LED equivalents for replacing legacy metal halide (MH) and HPS flood fixtures, delivering comparable or better target lux at far lower power.
| Traditional | LED Equivalent |
|---|---|
| 400W Metal Halide flood | 100 – 150W LEDComparable or higher target lux |
| 1000W Metal Halide flood | 300 – 400W LEDComparable or higher target lux |
| 2000W Metal Halide (stadium) | 600 – 1000W LEDComparable lux, instant strike |
| 400W HPS flood | 150 – 200W LEDComparable lux, far better color (CRI) |
* Approximate equivalents. Actual replacement wattage depends on existing fixture efficiency, throw distance, and target lux. Request a DIALux retrofit study.
Floodlight Applications
From construction and site lighting to commercial area lighting and public spaces — flood lights engineered for the environment.
Industrial & Manufacturing Sector
Factory floors, warehouses, distribution centers, assembly lines, loading docks
Commercial Area & Public Spaces
Parking lot and area lighting, building facades, billboards, plazas, commercial complexes
Weatherproof & Harsh Environments
Ports, terminals, construction and site lighting, oil & gas yards, marine environments, mining sites
Agriculture & Other Fields
Greenhouses, livestock facilities, agricultural compounds, rural roads
LED Flood Lights — Buyer Questions Answered
Direct answers to the questions specifying engineers, EPC contractors, and procurement teams ask before placing an order.
What power range do Sunjoylight LED flood lights cover?
Sunjoylight LED flood lights cover 50W to 1200W across 11 model series (SJTG601, SJTG602, SJTG603, SJTG604, SJTG605, SJTG606, SJTG608, SJTG609, SJTG610, SJTG611, SJTG612). The SJTG610 flagship can scale up to 1200W for ultra-large area projects like stadiums and ports. Lumen output ranges from 6,500 LM (50W) to 192,000 LM (1200W).
What IP rating do these LED flood lights have?
All Sunjoylight LED flood lights are rated IP65, meaning they are dust-tight and protected against low-pressure water jets from any direction. They are tested in our in-house IP rating chamber. The die-cast aluminum housing with silicone gasket and tempered glass front cover ensures reliable operation in outdoor industrial environments including warehouses, ports, sports fields, oil & gas yards, and roadway projects.
What is the minimum order quantity (MOQ) and lead time?
Minimum order quantity is flexible — typically 100-500 pieces depending on the model series and customization required. Standard lead time is 15-25 days for in-stock configurations. OEM/ODM orders with custom wattage, voltage, beam angle, or branding typically ship within 30-45 days after artwork approval and sample confirmation.
Do you provide IES files and photometric data for lighting design?
Yes. IES and LDT photometric files are available for every model series, fully compatible with DIALux, Relux, and AGi32 lighting design software. LM-79 (photometric) and LM-80 (lumen maintenance) test reports are provided on request. Spec sheets include full photometric curves, beam angle distributions, and luminous intensity diagrams.
What is the warranty on Sunjoylight flood lights?
Standard warranty is 5 years across all 11 flood light series. The rated lifespan is over 50,000 hours based on LM-80 test data. Junction temperature is kept below 65°C in full-load testing, ensuring long-term reliability. Replacement parts are stocked for the warranty period.
Can you customize the wattage, beam angle, or branding (OEM/ODM)?
Yes — Sunjoylight is a true OEM/ODM manufacturer with full in-house capability. We can customize wattage (50W to 1200W), beam angles (15°, 30°, 60°, 90°, asymmetric distributions), color temperatures (2700K-6500K), voltages (100-277V, 347V, 480V options), housing finish, branding, and packaging. Minimum order applies — typically 500+ units for custom OEM.
What applications are these flood lights best suited for?
Sunjoylight LED flood lights are deployed across four primary application sectors: (1) Industrial & Manufacturing — factory floors, warehouses, distribution centers, assembly lines, loading docks; (2) Commercial & Public Spaces — building facades, billboards, parking lots, plazas; (3) Special & Harsh Environments — ports, terminals, oil & gas yards, mining sites; (4) Agriculture & Other Fields — greenhouses, livestock facilities, rural roads.
What is the brightest LED flood light you make?
The SJTG610 flagship scales to 1200W, the highest single-fixture output in our range. But "brightest" is better answered with a measurement than a wattage: our 200W-class unit measured 35,309 lm at 201.3 W on a distributed goniophotometer, with a peak intensity of 34,444 cd — which at 8 m mounting delivers roughly 538 lux directly beneath the fixture. Peak candela and beam angle, not the lumen headline, decide how bright a flood light actually is at your mounting height. The full report is downloadable on this page.
What is a high lumen LED flood light, and what output should I expect per watt?
A high-lumen flood light is one whose measured whole-fixture output — not summed LED chip figures — is high relative to its input power. Our range runs 120–160 lm/W across the series, and the tested 200W unit measured 175.4 lm/W on the complete fixture. The distinction matters commercially: chip-lumen arithmetic typically overstates real fixture output by 10–20%, so always compare measured LM-79-style whole-fixture data rather than catalogue claims.
Are LED flood lights energy efficient compared with metal halide?
Substantially. LED flood lights typically draw 50–70% less power for equivalent delivered light, because directional optics put lumens on the target instead of into the sky, and there is no restrike delay or ballast loss. Our tested 200W unit returned an EEI of 0.081 (energy class A++) with a measured power factor of 0.986 — power factor matters because a poor one inflates apparent load and heats wiring across a multi-fixture installation. Adding motion or photocell control on top typically cuts consumption again on low-traffic positions.
Are your LED flood lights dimmable?
Yes — dimmable drivers are configured at order stage, with 0-10V and DALI protocols available depending on the series, plus photocell and motion-sensor options. Specify the control protocol with the order: retrofitting a dimmable driver into a sealed IP65 flood body afterwards means opening the fixture and its gasket, which is both a labour cost and an ingress risk.
Do you make solar flood lights as well?
Yes. Our solar flood range spans 50W to 500W across two families — SJTG620S with a remote panel, so the head can aim at a sign or facade while the panel faces the sun, and SJTG621S, a slim aluminium projector for larger areas. They suit positions where trenching a cable costs more than the light: yard corners, gates, billboards, flagpoles, perimeters and farm buildings. Panel and battery are sized to your location's worst-month sun-hours rather than a universal runtime figure.
Which Sunjoylight flood light series should I choose for a stadium project?
For stadium and large-area sports lighting, the SJTG611 (100W-400W modular) or SJTG610 (50W-1200W flagship) are most commonly specified. The SJTG611 features independently rotatable modules with set screws for orientation lock, plus high-transparency PC optical lenses. The SJTG610 uses a Matrix Glass Lens with 95% light transmittance and a Climax Grille Structure for superior heat dissipation, supporting up to 1200W output per fixture.
Who Makes Sunjoylight LED Flood Lights
Sunjoylight is the export brand of Changzhou Shuangjia Electrical Appliance Co., Ltd. (also marketed under the LUYI® brand domestically), an industrial LED lighting manufacturer founded in 1999 and headquartered in Changzhou, Jiangsu Province, China. With over 25 years of continuous operation, the company specializes in engineered LED solutions for warehouses, oil & gas facilities, mining operations, ports, sports venues, and roadway infrastructure projects worldwide.
The Floodlight Series comprises 12 distinct model families — from the compact SJTG601 50W reflector design up to the flagship SJTG610 Matrix Glass Lens fixture that scales to 1200W for ultra-large-area illumination. Every fixture is built around a die-cast aluminum housing, Lumileds 3030 LED chips, high-temperature tempered glass front cover, and IP65-rated silicone gasket sealing. Operating voltage spans AC100-277V to accommodate global power grids.
Manufacturing takes place on integrated core industrial lines with on-site SMT lines, high-pressure die-casting cells, an integrating sphere photometric lab, salt-spray testing chamber, IP rating tank, and aging stations. This vertical integration means Sunjoylight is a true manufacturer rather than a trading company — every batch passes through our own QC stations before shipping. Lumen efficacy reaches 120-160 lm/W, junction temperature is held below 65°C under full load, and rated lifespan exceeds 50,000 hours validated by LM-80 testing.
The company ships to over 50 countries across Europe, the Middle East, Latin America, Southeast Asia, Africa, and Oceania. Documentation packages are tailored to destination market requirements. Order fulfillment supports FOB, CIF, DDP, and door-to-door logistics with delivery lead times of 15-25 days for standard configurations and 30-45 days for OEM/ODM orders. Standard warranty across the Floodlight Series is 5 years.
